Description
-

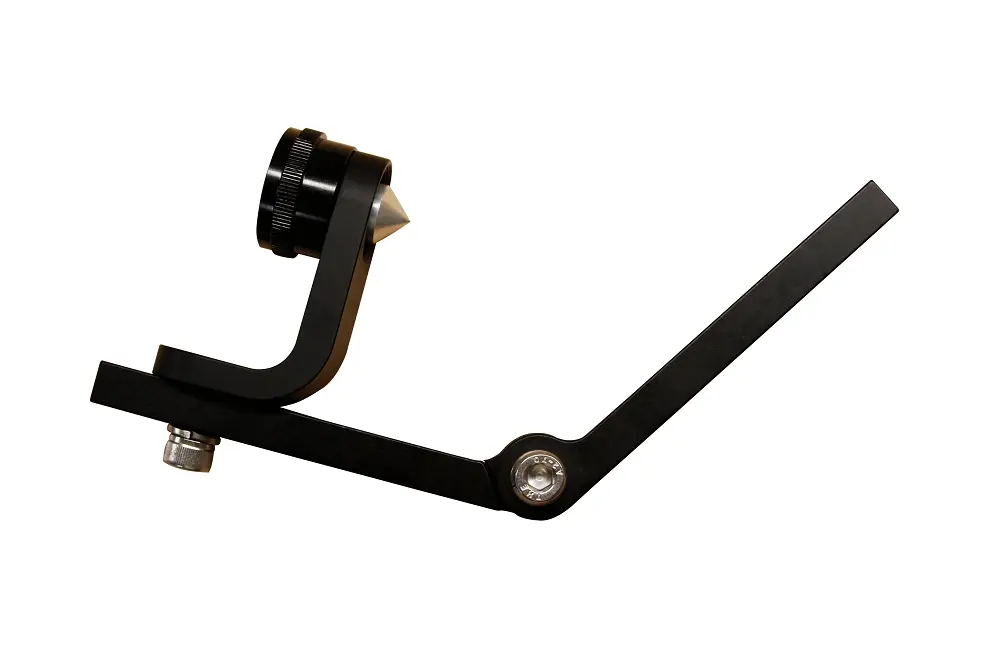

This prism series is ideal for deformation and mining surveys or wherever permanent mounting is needed
-
This design makes mounting and pointing easy on uneven surfaces
-
Mounting arm allows tilt up to 240 degrees and prism mount allows 360 degrees rotation
-
The two mounting holes are spaced 1.75″ (44.4mm) apart
-
Mounting holes are 0.328″ ( 8.3mm ) diameter
-
Two prism mounting holes, spaced 1.75″ (44.4mm) apart
-
Pivot and prism mounting bolts are 8MM stainless steel with lock washers 6mm
-
Hex wrench included
-
Prism size: 25 mm
-
Copper coated
-
Weight 0.50lbs (0.23kg)
